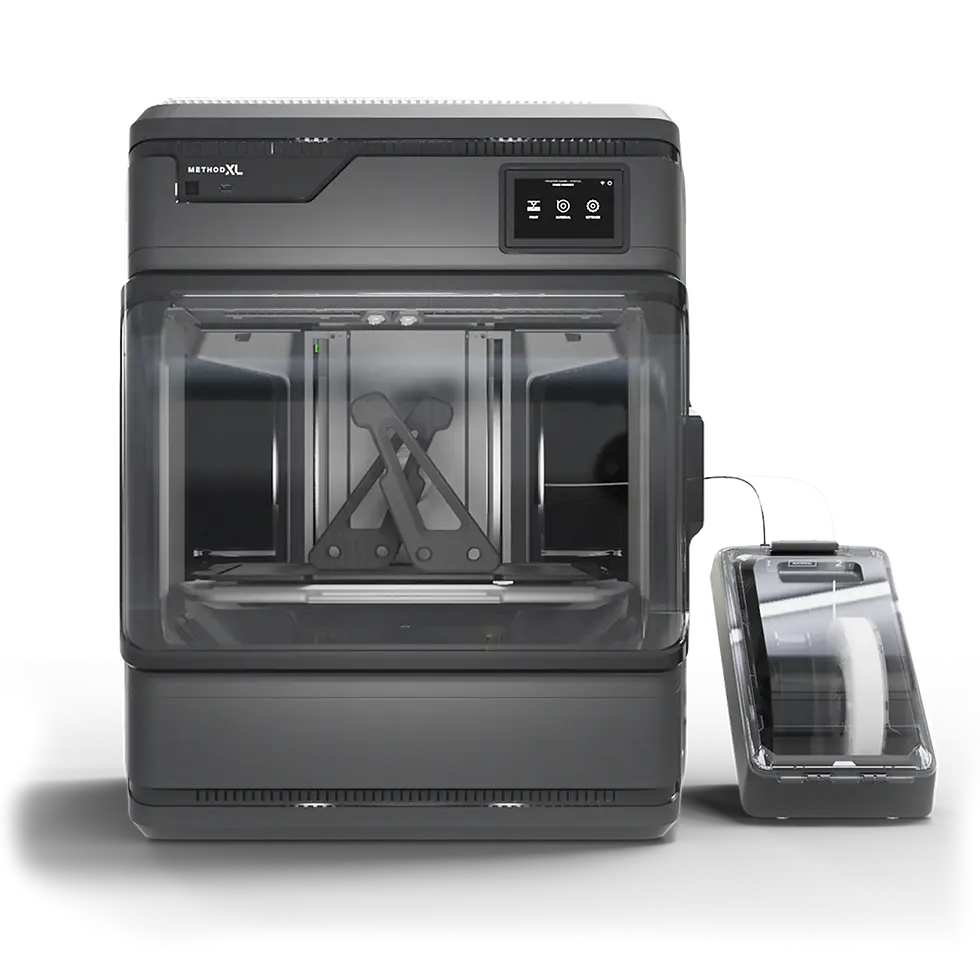

ULTIMAKER METHOD XL
The UltiMaker Method XL is a large-format, industrial-grade FDM 3D printer engineered for high-precision ABS and engineering material printing. Designed to bridge the gap between desktop and industrial systems, it features an actively heated chamber, dual extrusion, and advanced thermal control, enabling production of strong, dimensionally accurate parts comparable to injection-molded components.
With its extra-large build volume and tightly controlled print environment, the Method XL is ideal for functional prototyping, tooling, and low-volume production, making it a strong fit for engineering labs, manufacturing units, and advanced makerspaces.
Specifications
Parameter
Specification
Print Technology
FDM (Fused Deposition Modeling)
Build Volume
305 × 305 × 320 mm
Extrusion System
Dual extrusion (direct drive)
Nozzle Diameter
0.4 mm
Layer Resolution
100 – 400 microns
Max Nozzle Temperature
Up to 300°C
Heated Chamber
Active heating up to 100°C
Build Plate
Flexible steel plate (heated up to ~105°C)
Materials Supported
ABS, ABS-R, ABS Carbon Fiber, support materials
Dimensional Accuracy
±0.2 mm (or ±0.002 mm per mm travel)
Filament System
External moisture-controlled material case
Air Filtration
HEPA + activated carbon filters
Connectivity
Wi-Fi, Ethernet, USB

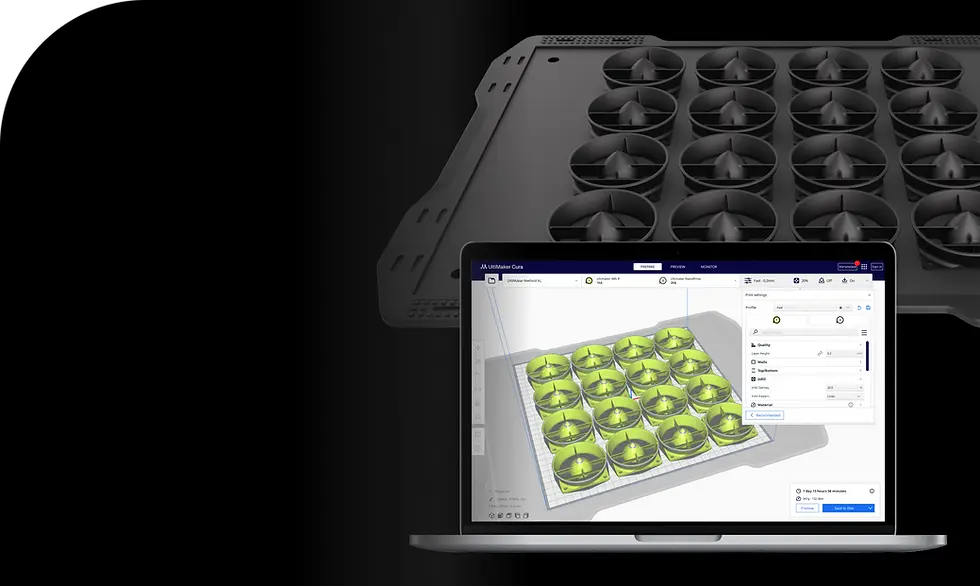

Software
UltiMaker Cura + UltiMaker CloudPrint
Display
5” touchscreen interface
Machine Weight
~56.5 kg
